RAVEN RP35

https://www.buildinghardware.pk/web/image/product.template/13160/image_1920?unique=530a090
(0 review)

RAVEN DROP DOWN SEAL

MAIN FEATURES:
Seals all gaps between 3mm - 13mm
Drops down only when the door is closed

PRODUCT CODE: 50203766

6,490.00 Rs. 6490.0 PKR 6,490.00 Rs.

6,490.00 Rs.

Not Available For Sale


  • Brand

This combination does not exist.

Out of Stock
Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist


Internal Reference :
03766
Share :
100% original guarantee
Return within 30days
Free delivery on all orders
BRAND: Raven
ORIGIN: Australia

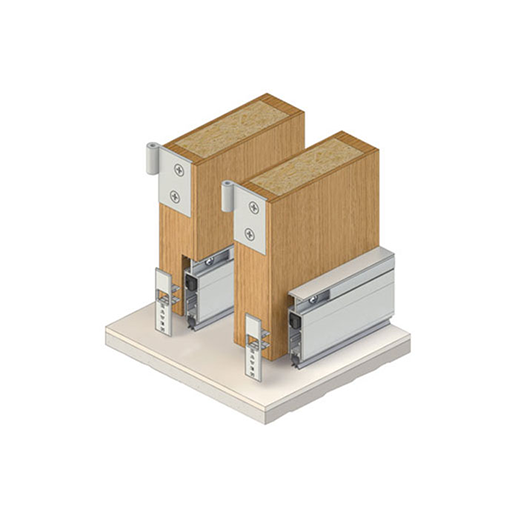

Introducing the Adjustable Automatic Door Bottom Seal by Yale, designed for versatile door applications. It features an adjustable strike for automatic operation and a spring-loaded mechanism that lifts clear of the floor when the door opens, enhancing convenience and reducing wear. Acoustically engineered for improved soundproofing, it includes concealed screw fixings with zinc-plated screws and color-matched escutcheon plates for a neat finish. With pre-slotted fixing holes and suitable for gaps ranging from 3mm to 13mm, this seal is ideal for various door types, ensuring efficient closure and enhanced energy efficiency.

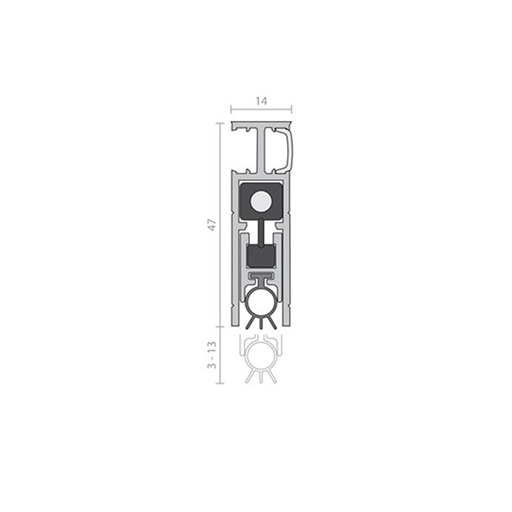

DIMENSIONS
- Length: 820mm (32.3 inches), 1070mm (42.1 inches), 1220mm (48 inches) (can be cut back to 600mm, 920mm, 1070mm respectively)

APPLICATION
Automatic door bottom seal for single and double inward/outward opening doors, designed for access and mobility, medium temperature smoke and fire door applications.

MATERIAL
Anodised Aluminium with Silicon Rubber (SE) gasket

FEATURES
- Adjustable strike for automatic operation
- Spring-loaded to lift clear of the floor when the door is opened
- Acoustically designed for improved soundproofing
- High efficiency mechanism to assist with closing force requirements
- Concealed screw fix with zinc-plated, cross-recess head screws and color-matched escutcheon plates
- Pre-slotted fixing holes
- Min/Max Gap: 3mm to 13mm
- Suitable for various door types (single/double, inward/outward opening)

Brand RAVEN
