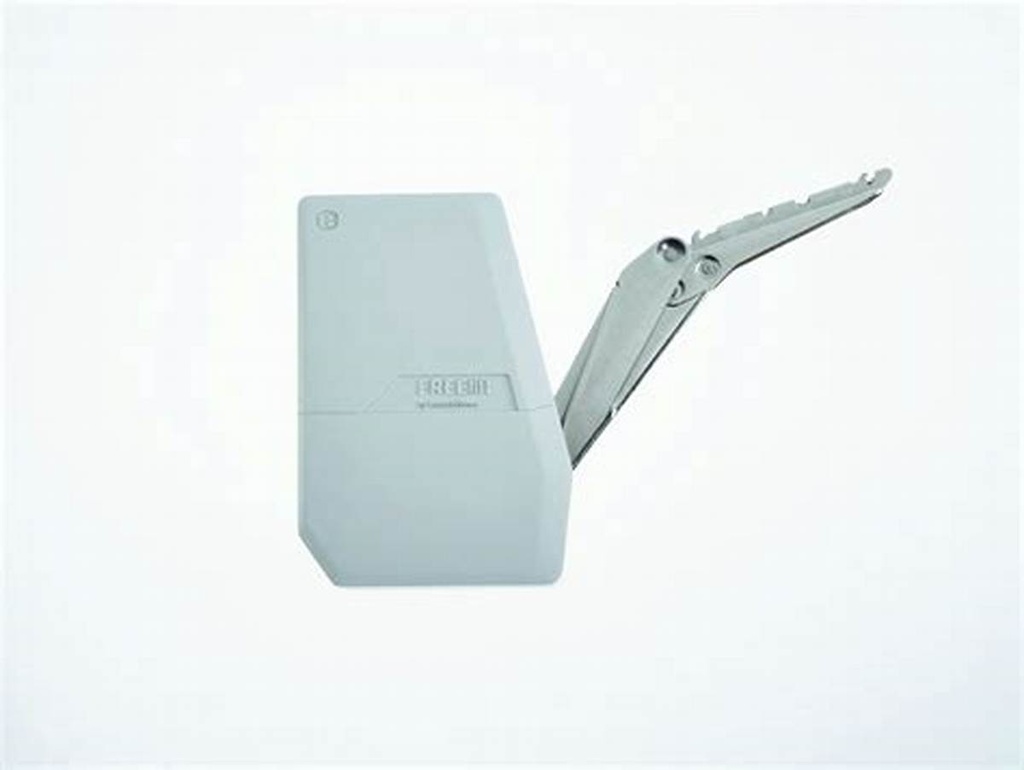

KESSEBÖHMER FREE FLAP FORT E
KESSEBÖHMER Lift Up Single Shutter
Main Features:
Damped Closing
Can be held at any angle
Maximum Opening angle 107°
secure hold
easy open
Practical, balanced and compact. FREEflap is the small but strong member of the lift family. At just 118 mm installation depth, it can lift front panels weighing up to 27 kg. It combines front panel connection and stay function, rendering hinges superfluous. With extensive setting options it achieves perfect panel alignment and secure door overlay. The adjustable multi-position function and integrated damping ensure the highest level of user-friendliness. And thanks to pre-installed screws, installation is very easy and extremely quick.
PRODUCT CODE: 100300901
Internal Reference :
00901
100% original guarantee
Return within 30days
Fast delivery on all orders
BRAND: KESSEBOEHMER
ORIGIN: Germany
APPLICATION

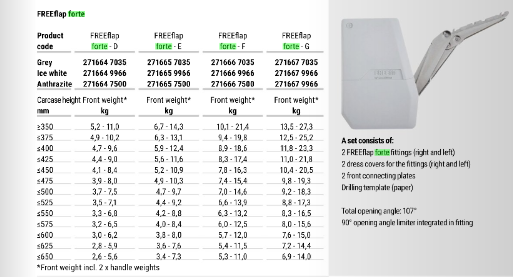

For Carcase height 350-650 mm
For Carcase width upto 900 mm
MATERIAL AND COLOR
Color: Gray
Material: Zinc Alloy
PACKAGE INCLUDES
2 FREEflap forte fittings (right and left)
2 dress covers for the fittings (right and left)
2 front connecting plates
1 Drilling template (paper)
FEATURES
E touch (one touch triggers a gentle harmonious opening process)
Equipped with 3D adjustment.
Built in Push to open feature.
Easy to install with minimal requirement of tools.
Secures hold in any position.
Opening angle 107°.
Gentle damping when closing.
ORIGIN: Germany
APPLICATION
For Carcase height 350-650 mm
For Carcase width upto 900 mm
MATERIAL AND COLOR
Color: Gray
Material: Zinc Alloy
PACKAGE INCLUDES
2 FREEflap forte fittings (right and left)
2 dress covers for the fittings (right and left)
2 front connecting plates
1 Drilling template (paper)
FEATURES
E touch (one touch triggers a gentle harmonious opening process)
Equipped with 3D adjustment.
Built in Push to open feature.
Easy to install with minimal requirement of tools.
Secures hold in any position.
Opening angle 107°.
Gentle damping when closing.
| Brand | KESSEBÖHMER |
| Origin | Germany |
